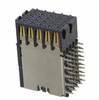

TE Connectivity High Speed Backplane Connectors 5120791-1

Body Features

• Primary Product Color : Black
• Shield Material : Phosphor Bronze

Configuration Features

• Backplane Architecture : Traditional Backplane
• Number of Columns : 5
• Number of Positions : 50
• Number of Rows : 10
• PCB Mount Orientation : Right Angle
• Stackable : No

Contact Features

• Contact Base Material : Copper Alloy
• Contact Current Rating (Max) (AMP) : 1.15
• Contact Mating Area Plating Material : Tin (Sn)
• Contact Mating Area Plating Material Thickness : .5 MICM  [19.68 MICIN ]
• Contact Shape & Form : Dual Beam
• Contact Type : Receptacle
• Contact Underplating Material : Nickel
• PCB Contact Termination Area Plating Material : Tin
• PCB Contact Termination Area Plating Material Finish : Matte

Dimensions

• Connector Height : 21.1 MM  [.83 INCH ]
• Connector Length : 28.67 MM  [1.128 INCH ]
• Connector Width : 21.1 MM  [1.129 INCH ]
• PCB Hole Diameter : .6 MM  [.024 INCH ]
• PCB Thickness (Recommended) : 1.4 MM  [.055 INCH ]
• Row-to-Row Spacing : 2 MM  [.079 INCH ]

Electrical Characteristics

• Operating Voltage (VAC) : 250

Housing Features

• Centerline (Pitch) : 2.5 MM  [.098 INCH ]
• Housing Material : Polyester GF

Industry Standards

• UL Flammability Rating : UL 94V-0

Mechanical Attachment

• Connector Mounting Type : Board Mount
• Guide Hardware : Without
• Mating Alignment : With
• Mating Alignment Type : Polarization
• Mating Retention : Without
• PCB Mount Retention : With
• PCB Mount Retention Type : Action/Compliant Tail

Operation/Application

• Circuit Application : Signal

Packaging Features

• Packaging Method : Tube

Product Type Features

• Backplane Module Type : Center
• Connector & Contact Terminates To : Printed Circuit Board
• Connector System : Board-to-Board
• PCB Connector Type : PCB Mount Receptacle
• Shroud Style : Unshrouded

Signal Characteristics

• Number of Differential Pairs per Column : 5

Termination Features

• Termination Method to PCB : Through Hole - Press-Fit
• Termination Post & Tail Length : 2.1 MM  [.055 INCH , .083 INCH ]

Usage Conditions

• Operating Temperature Range : -65 - 105 DEGC  [-85 - 221 DEGF ]

ZP HS3 DB 10R REC 050P CT PD

Alternative Parts (Cross-Reference): Cross
Manufacturer: AMIS
Category: Connectors,Interconnects
Package: 292-LBGA
Product Status: Preliminary
Connector Usage: Daughtercard
Connector Type: Receptacle
Number of Positions: 5
Number of Positions Loaded: All
Mounting Type: Fixed

50 Pos RA Thru-Hole Press-Fit Connector, 1.15A, 2mm Pitch Product overview: 5120791-1 from TE Connectivity is an Electronic Connector for board-to-board, wire-to-board, backplane, terminal, cable, and industrial interconnect applications. It is useful for engineers and buyers comparing datasheets, replacement parts, BOM lines, package options, lifecycle status, and procurement availability. Key searchable attributes include 1.15A. Search-friendly keywords include connector, interconnect, header, socket, terminal block, 1.15A, Electronic Connector, Specialized Backplane Connectors. This listing supports clearer product discovery for industrial, commercial, repair, automation, power, sensing, and embedded system projects. Product number 407-5120791-1 can be used for catalog matching and distributor lookup.
